Export Pneumatic Rubber Fender

Export Pneumatic Rubber Fender #2975

Category: Post

Pneumatic Rubber Fender, specification
3.3M*6.5M 50Kpa
3.3M*6.5M 80Kpa
or custom sizes and requirements

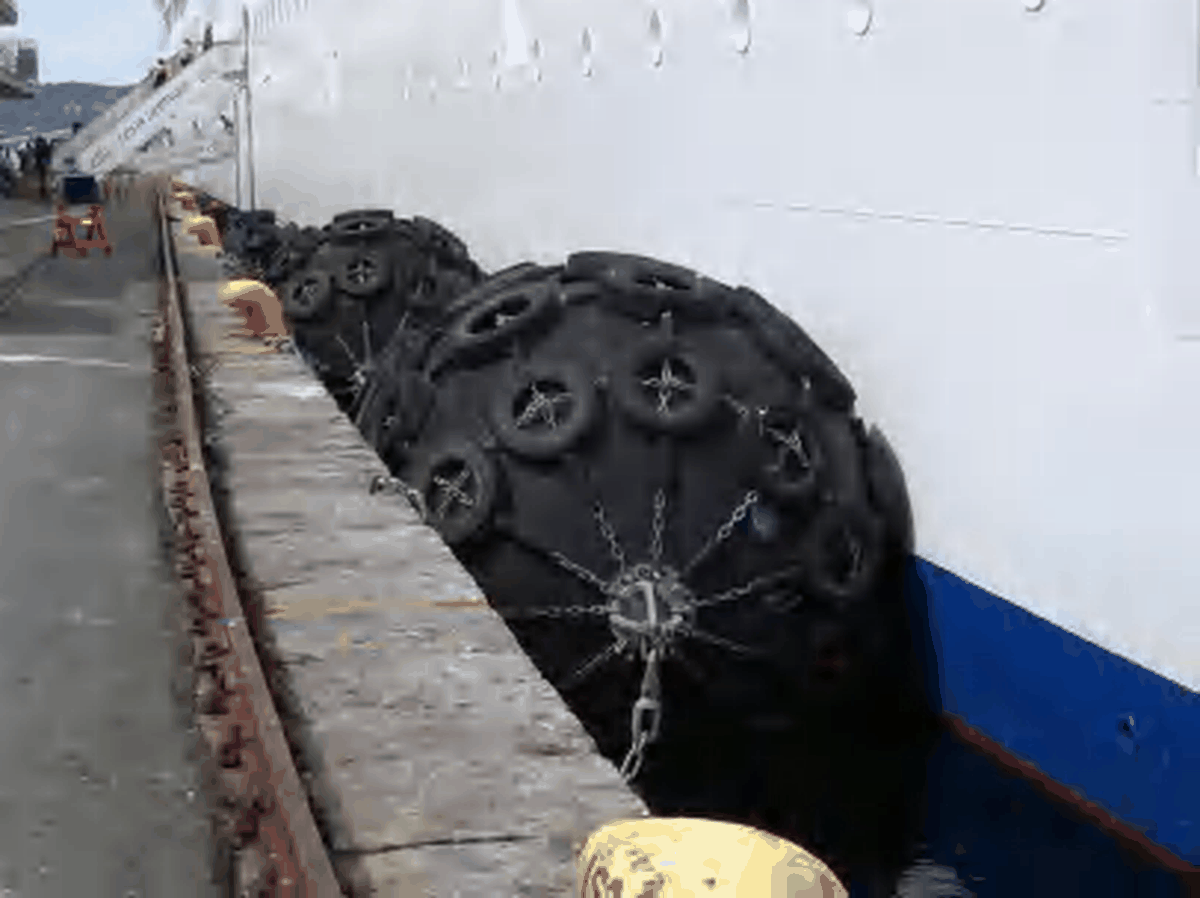

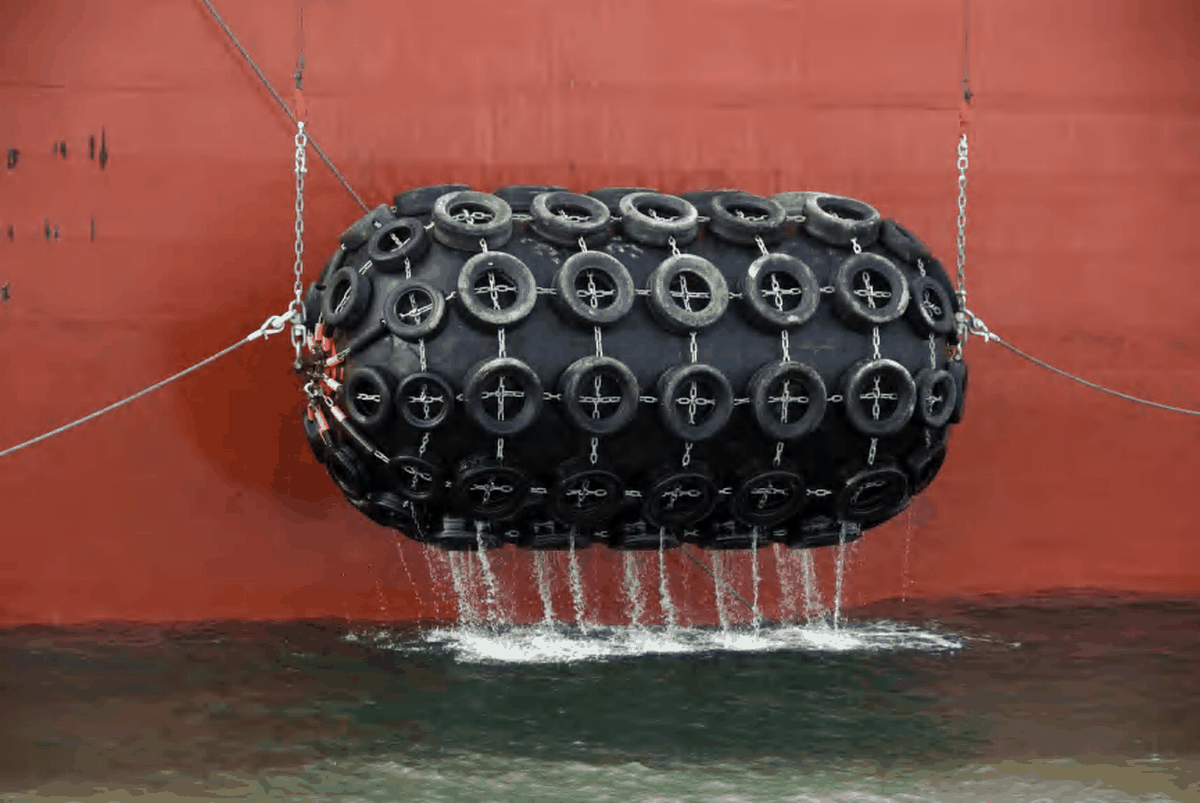

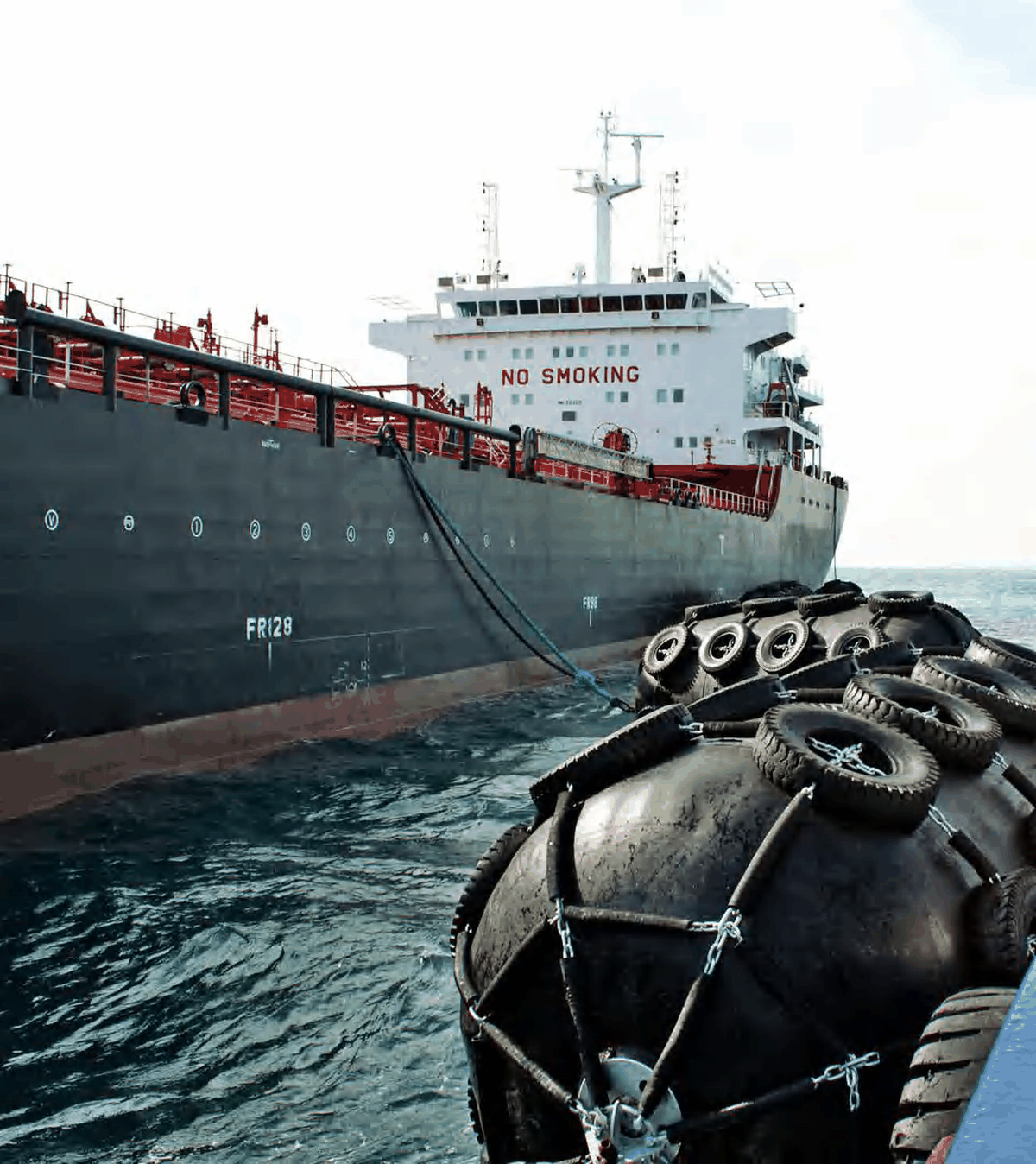

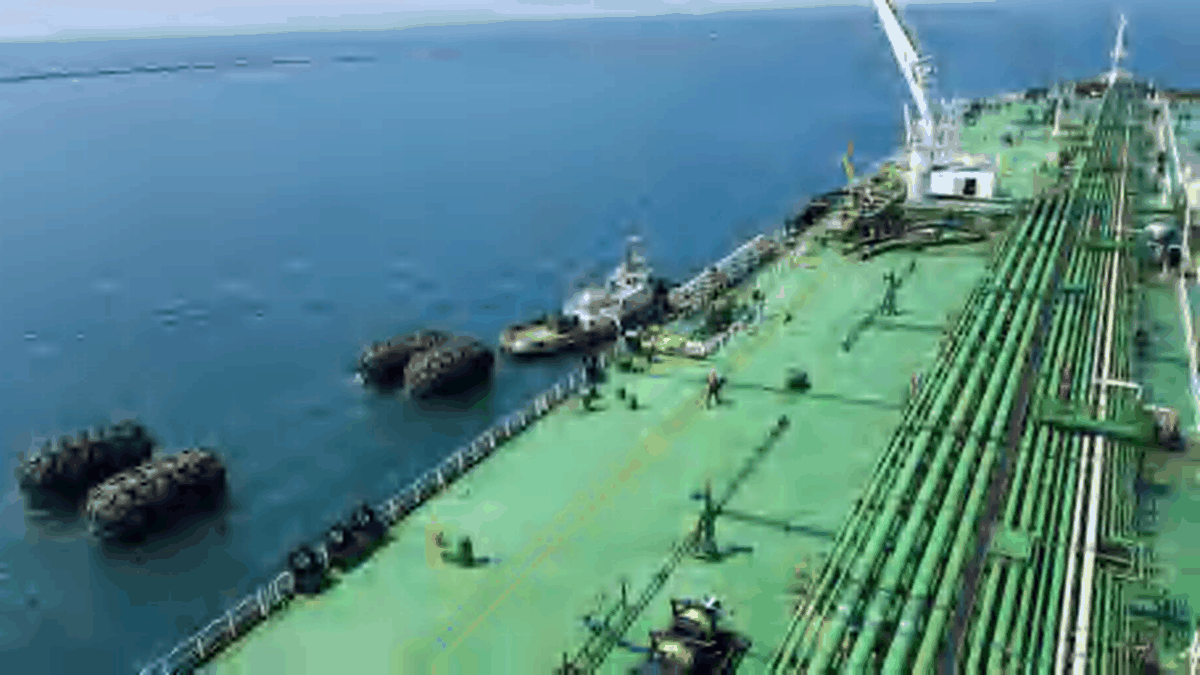

It is one kind of ship berthing, cushioning and protection equipment, which uses compressed air as the buffer medium to prevent collision when the ship is berthing. These pneumatic rubber fenders play a vital role in the safe operation of ship berthing and mooring, and are widely used in the fields of ship, marine facility, marine platform, port and dock, yacht and so on. The pneumatic rubber fender is more economical and durable than the ordinary rubber fender, so it is more popular and widely used..

Delivery: CIF, FOB

Price: Pls ask

Procedure Warranty

We supply marine products, such as pneumatic rubber fenders, foam filled fenders, marine rubber airbags, navigation mark, marine buoys, highway safety roller barrier. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc..

Buyer shall send inquiry and brief details requirements, and also qty.

We will send quotation accordingly.

Buyer confirm order, we will issue commercial invoice.

Buyer pay deposit, and we will then arrange shipment.

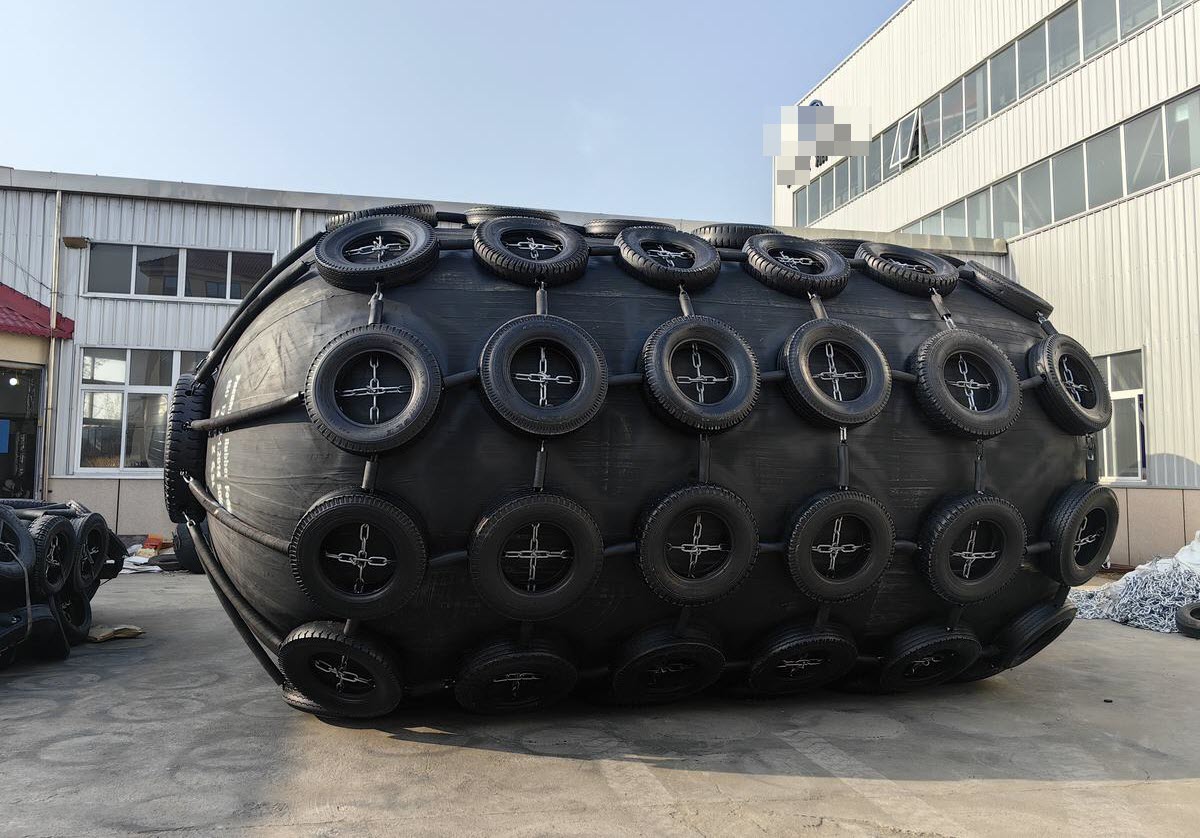

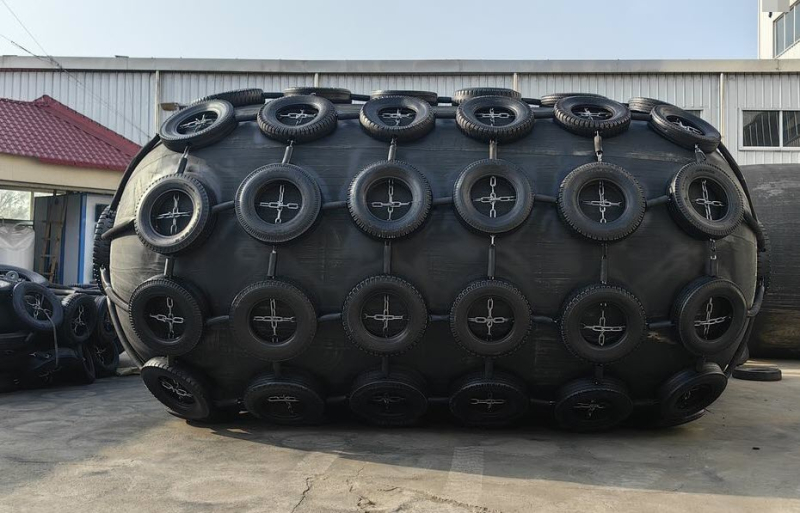

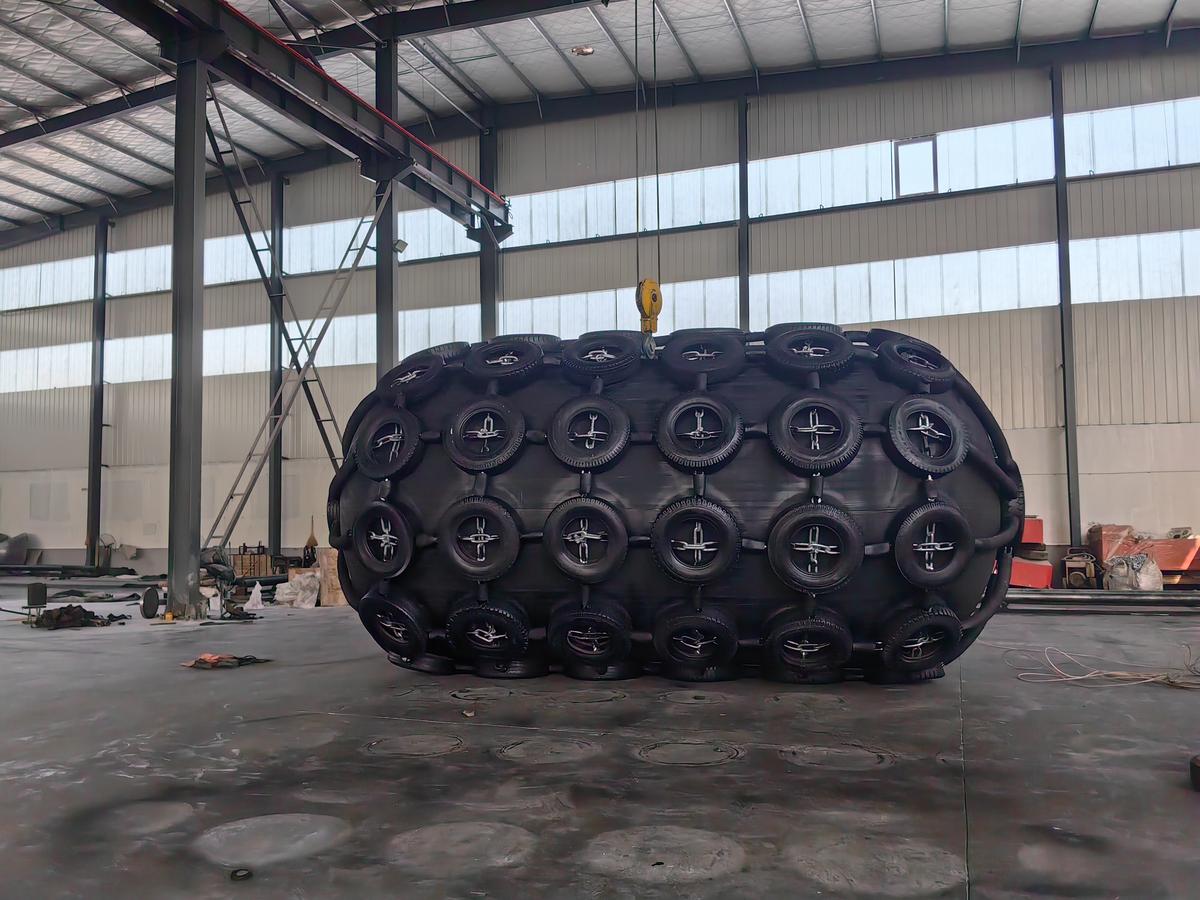

3.3*6.5M Pneumatic Rubber Fender

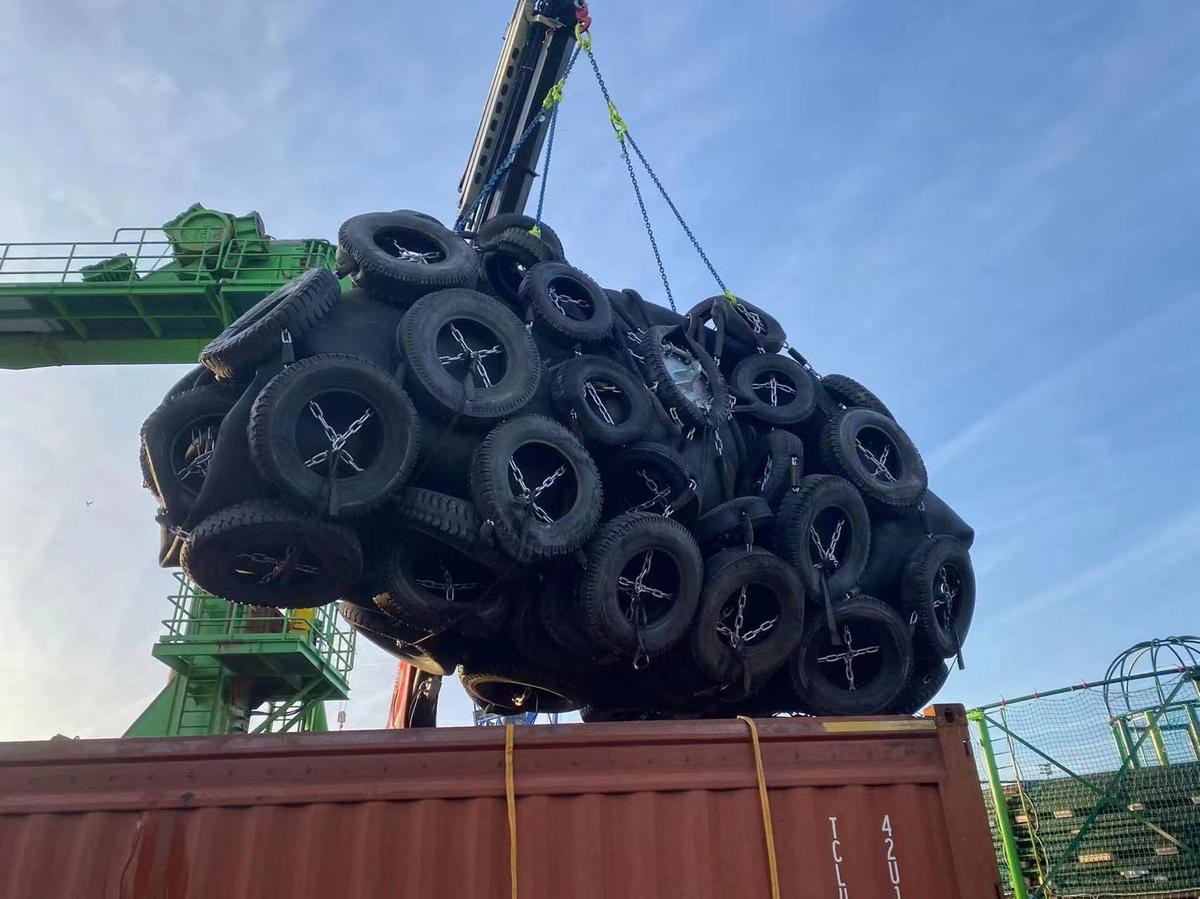

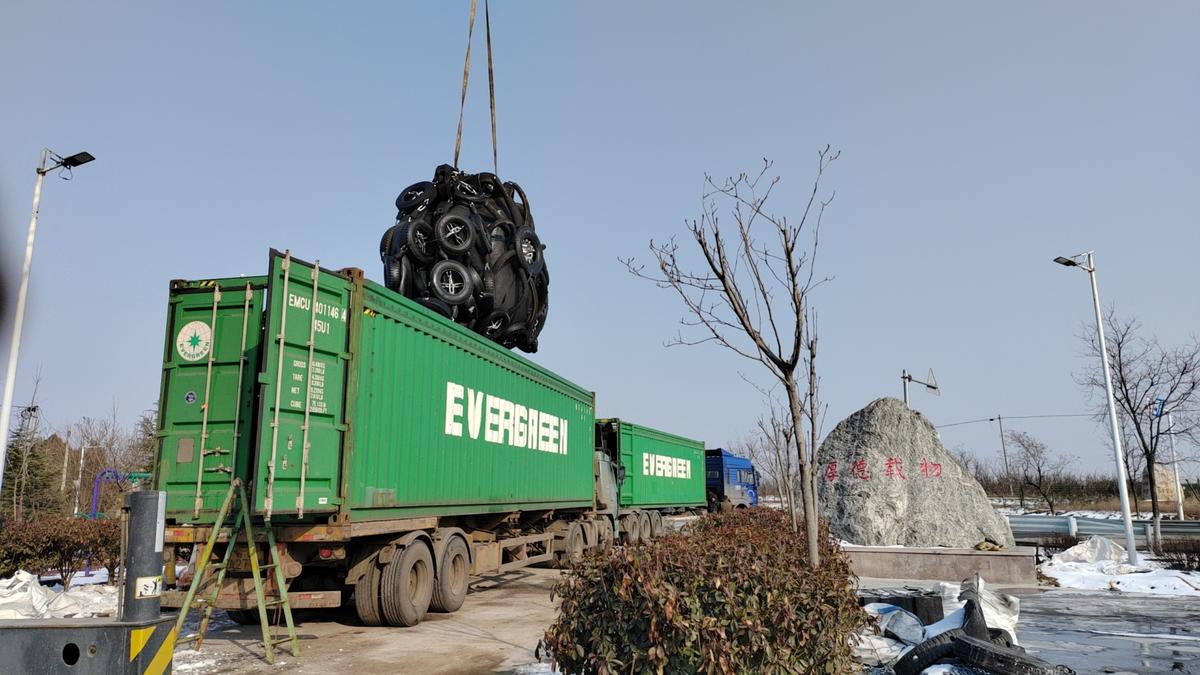

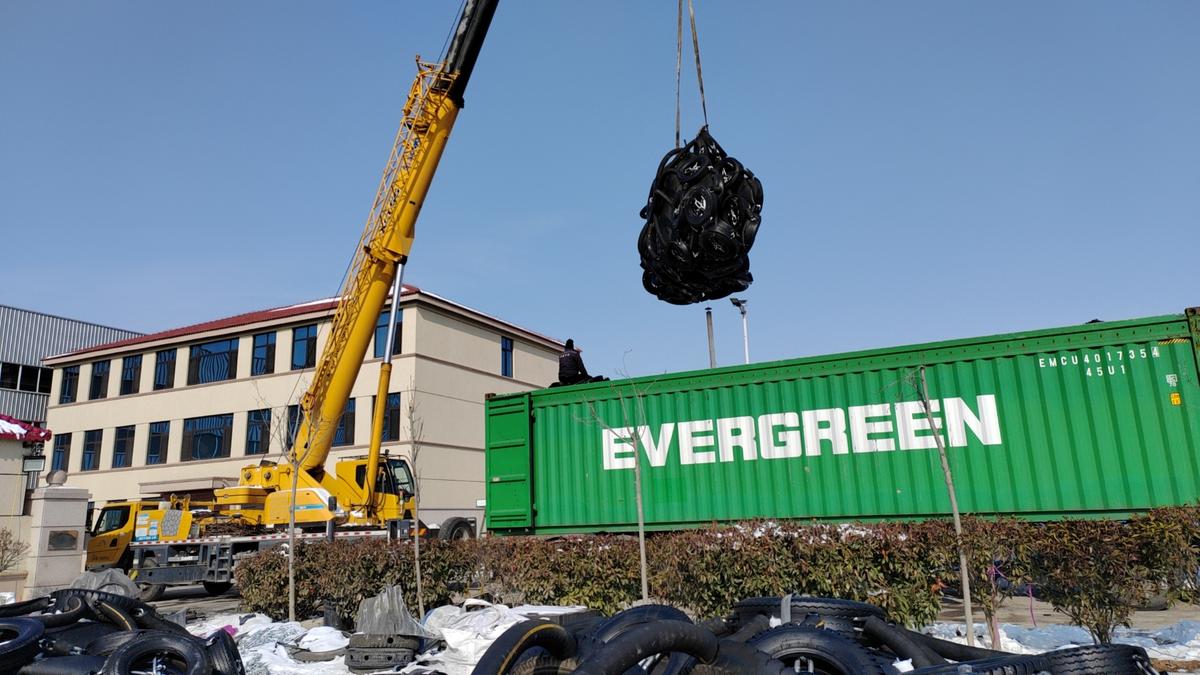

1 unit load in 20ft or 2 units load in 40ft container..
Weight 50Kpa is 3000kg, 80Kpa is 3700kg

Price USD FOB or CIF
Factory production Time 12 - 15 Days
Warranty Time 24 months

Pneumatic fender 50 size and performance requirements

Nominal size diameter × length mm	Initial internal pressure kPa	Guaranteed energy absorption (GEA)	Reaction force at GEA deflection (R)	Hull pressure (Internal pressure) at GEA deflection (P)
Nominal size diameter × length mm	Initial internal pressure kPa	Minimum value at deflection 60 ± 5 % kJ	Tolerance ±10 % kN	Reference value kPa
500 × 1 000	50	6	64	132
600 × 1 000	50	8	74	126
700 × 1 500	50	17	137	135
1 000 × 1 500	50	32	182	122
1 000 × 2 000	50	45	257	132
1 200 × 2 000	50	63	297	126
1 350 × 2 500	50	102	427	130
1 500 × 3 000	50	153	579	132
1 700 × 3 000	50	191	639	128
2 000 × 3 500	50	308	875	128
2 500 × 4 000	50	663	1 381	137
2 500 × 5 500	50	943	2 019	148
3 300 × 4 500	50	1 175	1 884	130
3 300 × 6 500	50	1 814	3 015	146
3 300 × 10 600	50	3 067	5 257	158
4 500 × 9 000	50	4 752	5 747	146
4 500 × 12 000	50	6 473	7 984	154

Regarding after-sales service for repairs, we will first send the customer the steps for inflation, routine maintenance, and basic repairs in text and video format, along with the necessary tools and repair materials free of charge.

Secondly, if the customer still has problems, we can provide remote guidance.

If the fender is unusable due to manufacturing defects after the customer receives the goods, we will replace it with a new one free of charge. If the customer needs to return it to the factory for repair, the customer will need to bear the shipping and customs clearance costs, while we will repair it free of charge.
